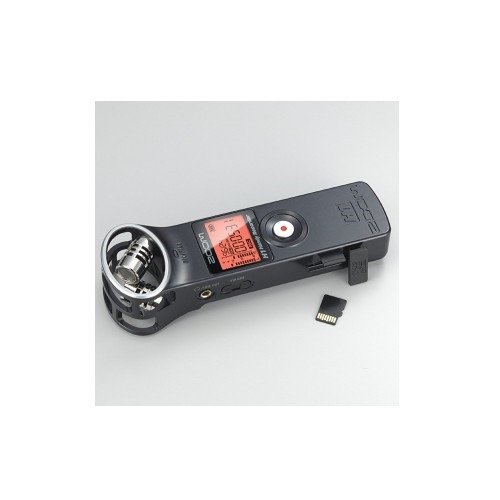

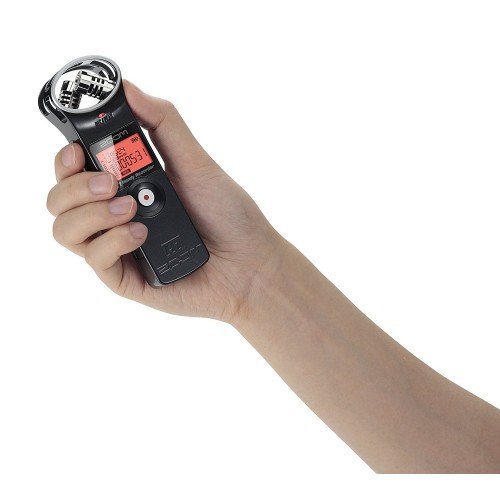

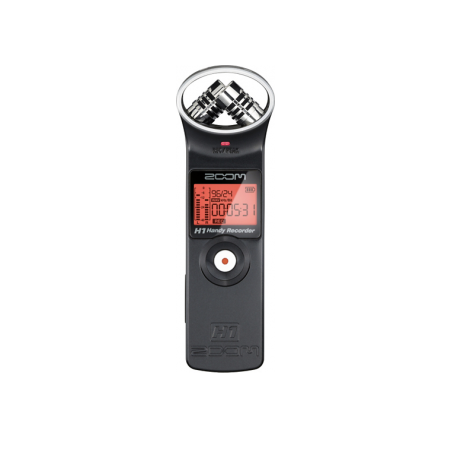

Zoom H1 Ultra-Compact Digital Handy Sound Recorder Price in Bangladesh

Handy Recorder

The ultra-compact H1 Handy Recorder brings new meaning to the term "portability." Small enough to slip in your pocket, it offers professional-quality stereo recording at an incredibly affordable price. Take it with you wherever you go—live concerts and band rehearsals, location video shoots, lectures and meetings—or use it to capture your musical ideas whenever inspiration strikes.

Using the H1

  • You can count on your H1 to deliver pristine audio wherever you go
  • Here are just a few ways it can be used
  • Recording live concerts and rehearsals
  • Capturing audio for video
  • Documenting lectures and meetings—faster and easier than taking notes
  • Conducting interviews in the field
  • Capturing song ideas

X/Y recording made simple

The X/Y technique provides a great way to cover a wide area while still capturing sound sources in the center with clarity and definition, making it perfect for all types of live stereo recording. The H1's built-in X/Y microphone provides two matched unidirectional microphones set at a 90 degree angle relative to one another, optimum for most stereo recording applications. Alternatively, you can connect a pair of external microphones or line level signal to the H1's Mic/Line Input mini phone jack for X/Y or other types of stereo recording.

The Ins and Outs

The H1 Mic/Line Input is a stereo â…›" mini phone jack that can accept two mic- and/or line-level signals. Condenser microphones requiring Plug-In Power (2.5 volts) can be connected to this jack. The H1 Line/Headphones Output is a stereo â…›" phone jack with a dedicated volume control. Headphones can be connected here for private monitoring. There's also a built-in speaker on the back panel for fast monophonic monitoring of the recorded signal without the need to make any connections. The H1's USB port provides a digital output of the stereo mix and allows data to be sent to and from your computer. From there, it can be imported into editing software such as the supplied WaveLab LE. It also allows the H1 to be used as a 2-in/2-out audio interface and USB microphone, as well as a microSD card reader.

Auto Level and low cut filter

The H1's Auto Level function sets input gain automatically to prevent overload and distortion. Alternatively, input level can be set manually. The H1 also provides a built-in low cut filter for the elimination of pops, wind noise, blowing, and other kinds of low frequency rumble.

Battery life and recording times

The H1 requires just a single AA battery—either alkaline or rechargeable NiMH—for power. Battery life when using an alkaline battery is up to 10 hours, even during continuous recording. Alternatively, you can use an optional AD-17 AC adapter, which allows you to power the H1 from any standard wall socket. The H1 records directly to microSD and microSDHC cards, up to 32 gigabytes. The chart below shows maximum recording time with different file formats and card sizes.

Zoom H1 Recorder Specs

  • Simultaneous Recording Tracks: 2
  • Simultaneous Playback Tracks: 2
  • Functions: Lo-cut Filter, Auto REC Level, Marker
  • Recording Format: WAV (Quantization: 16/24-bit, Sampling Frequency: 44.1/48/96kHz) MP3 (Bit Rate:48/56/64/80/96/112/128/160/192/224/256/320kbps, Sampling Frequency: 44.1kHz)
  • Playback Format: WAV (Quantization: 16/24-bit, Sampling Frequency: 44.1/48/96kHz), MP3 (Bit Rate: 32/40/48/56/64/80/96/112/128/160/192/224/256/320kbps, Sampling Frequency: 44.1/48kHz)
  • A/D Conversion: 24-bit, 128 times oversampling
  • D/A Conversion: 24-bit, 128 times oversampling
  • Signal Processing: 32-bit
  • Recording Media: microSD card (16MB - 2GB), microSDHC card (4GB - 32GB) Display: 127 segment custom LCD (with backlight)
  • Built-in Stereo Mic: Unidirectional condenser microphone
  • Gain: 0 to +39dB (Minimum gain with digital attenuation: -28dB)
  • Maximum Sound Pressure Level: 120dB SPL
  • Mic/Line Input: 1/8" stereo phone jack (Plug-in power supported)
  • Input impedance: 2kÎ (Input level: 0 to -39dBm)
  • Phones/Line Output: 1/8" stereo phone jack
  • Output Load Impedance: 10kÎ or more
  • Rated Output Level: -10dBm
  • Phones Output Level: 20mW + 20mW into 32Î load
  • Built-in Speaker: 400mW 8Î
  • USB Interface: Mini-B type (USB2.0 high-speed compatible), Mass Storage Class operation
  • Power Requirements: (LR6 or Ni-MH) AA battery x 1, or AC adapter (AD-17, USB to AC type)
  • Battery Life (LR6 batteries): 10 hours (MP3), 9.5 hours (WAV)
  • Dimensions (mm): 44(W) x 136(D) x 31(H)
  • Weight: 60g (without batteries)
