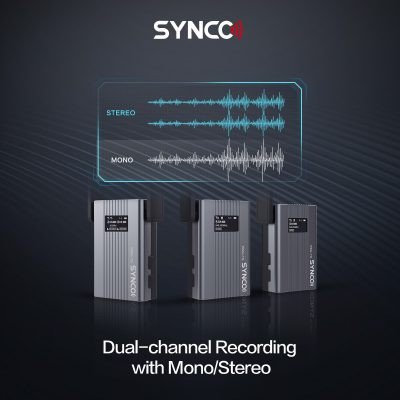

The Synco WMic-TS is a clear-sounding, easy-to-use wireless lavalier microphone system with two microphones and just one receiver. It provides vloggers, mobile journalists, Youtubers, and videographers with a complete solution for recording dialogue, interviews, and speech with two persons talking simultaneously—directly to a mirrorless/DSLR camera or a smartphone equipped with a headphone jack.

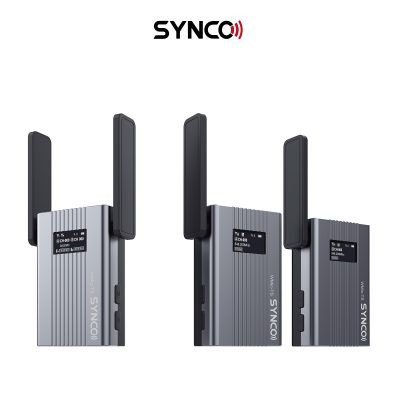

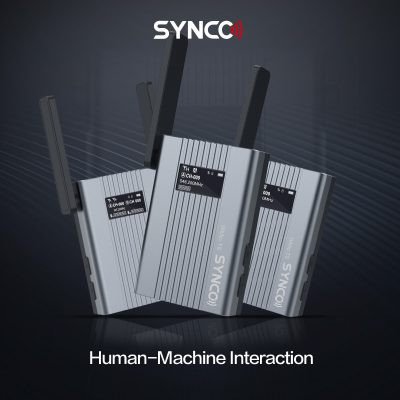

The lightweight WMic-TS consists of two compact transmitters each with its own built-in microphone and a separate omnidirectional lavalier microphone. When using the lavalier mics, the transmitters can be clipped on your belt. When using the built-in microphones, the transmitters can be positioned on a table for sit-down interviews or held in hand and operated as handheld microphones.

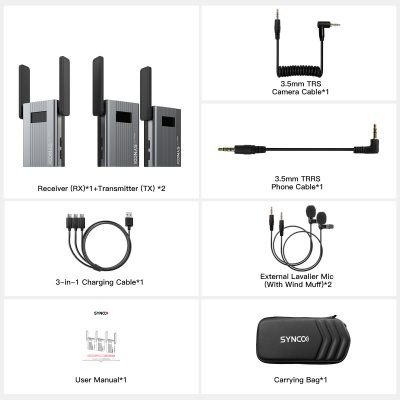

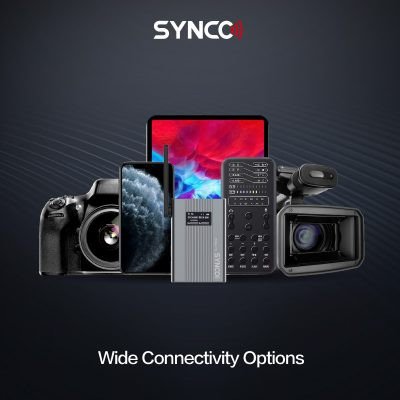

Also compact, the receiver mounts on your camera shoe. It plugs into your camera or mobile device using the included 3.5mm TRS or TRRS cables. A headphone jack allows you to monitor the audio from both transmitters in real time to ensure that you are capturing a clean signal. The 15-level gain control lets you to adjust your recording level to accommodate audio ranging from quiet speaking to booming sounds.

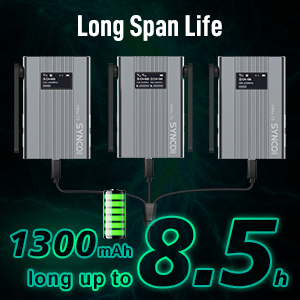

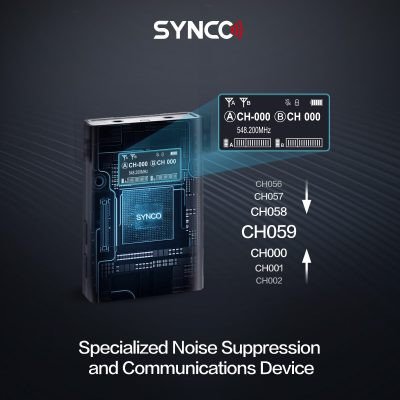

The system provides up to 8.5 hours of continuous use on USB-rechargeable batteries at a range up to 492'. You can choose from 60 frequencies to find a clean channel and avoid interference, and up to 12 WMic-TS can be deployed simultaneously in the same location if more audio channels are needed.

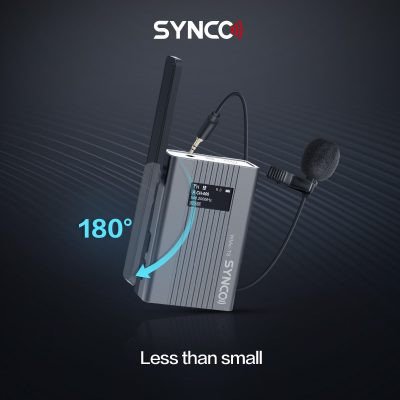

The transmitter is equipped with a built-in microphone and a 3.5mm mic input that accepts the included lavalier microphone.
For a truly wireless experience, the transmitter can be clipped on clothing without having to wire yourself or your talent.
Synco wireless LinkLable technology analyzes and calculates the frequency data using built-in smart chips to deliver a clear transmission at up to 492' (line-of-sight) or 262' (with obstruction).
The transmitters are equipped with a selectable high and low RF transmission setting, so you can use a more powerful setting for longer distances, or a lower setting for shorter distances and longer run time.
Wireless Transmission | Analog UHF |
Number of RF Channels | 60 |
Included Transmitters | 2 x Bodypack with Microphone |
Diversity | Non-Diversity |
RF Frequency Band | 525 to 539.75 MHz 540 to 554.75 MHz |
RF Channel Scanning | Manual |
Max Operating Range | 492.1' / 150 m (Line of Sight) 262.5' / 80 m (with Obstruction) |
Max Systems per Setup | 12 |
Latency | |
Encryption | None |
Form Factor | Camera-Mount |
Mounting Options | Belt Clip, Shoe-Mount |
Antenna | 2 x External, Fixed |
Number of Audio Channels | 2 |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output 1 x 1/8" / 3.5 mm TRS Female Unbalanced Headphone Output |
Word Clock I/O | None |
USB/Lightning Connectivity | 1 x USB Type-C (Charging) |
Spurious | Rejection: |
Power Requirements | Bus Power (USB) |
Battery Type | 1 x Built-In Rechargeable |

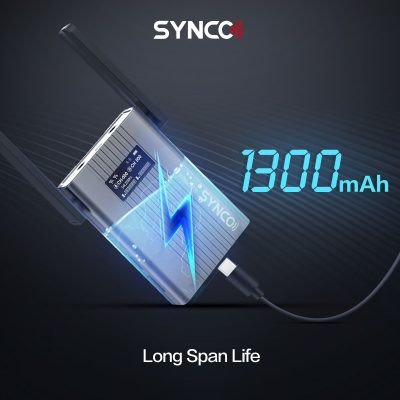

Internal Battery Capacity | 1300 mAh |
Battery Charging Time | 3 Hours |
Approx. Battery Life | 8.5 Hours (Lithium Rechargeable) |
Display & Indicators | 1 x OLED (Battery Status, Channel, Data Transmission, Frequency) |
Dimensions | 2.5 x 3 x 0.8" / 64 x 75.5 x 21.5 mm |
Weight | 2.5 oz / 72 g |
Form Factor | Bodypack |
RF Output Power | 3 / 30 mW |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Input |
Muting | Off/On Switch |
Auto-Level Control | No |
Signal Processing | High-Pass Filter: 100 Hz |
Sync Method | IR |
Antenna | 1 x External, Fixed |
Power Requirements | Battery |
Battery Type | 1 x Built-In Rechargeable |
Internal Battery Capacity | 1300 mAh |
Battery Charging Time | 3 Hours |
Approx. Battery Life | 8.5 Hours (Lithium) |
USB/Lightning Connectivity | USB Type-C (Charging) |
Display & Indicators | 1 x OLED (Audio Level, Battery Status, Group, RF Output Power) |
Dimensions | 2.5 x 3 x 0.8" / 64 x 75.5 x 21.5 mm |
Weight | 2.2 oz / 62 g |
Form Factor | Lavalier |
Sound Field | Mono |
Polar Pattern | Omnidirectional |
Frequency Range | 20 Hz to 20 kHz |
Sensitivity | -38 dB |
Output Connectors | 1 x 1/8" / 3.5 mm TRS Male |
Package Weight | 1.325 lb |
Box Dimensions (LxWxH) | 8.9 x 4.4 x 3.2" |
