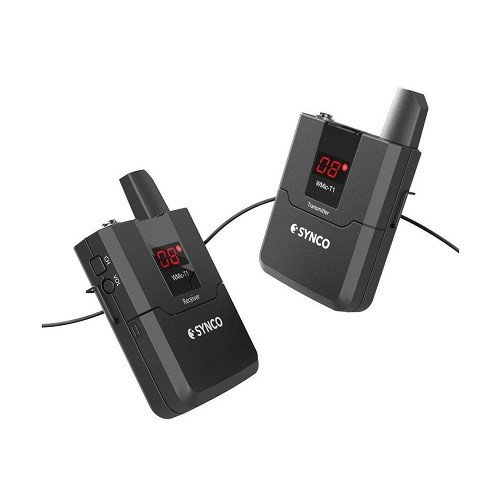

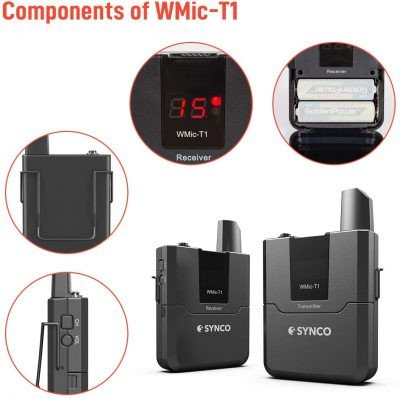

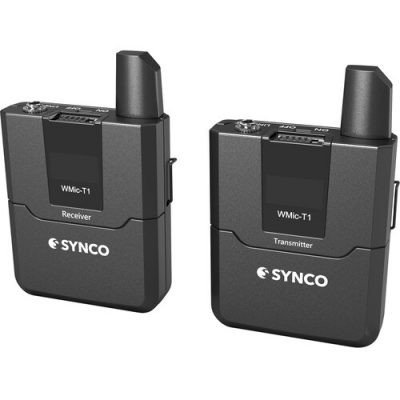

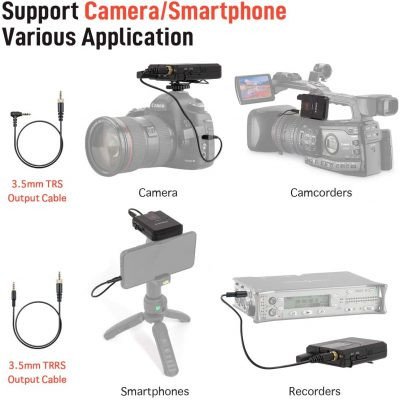

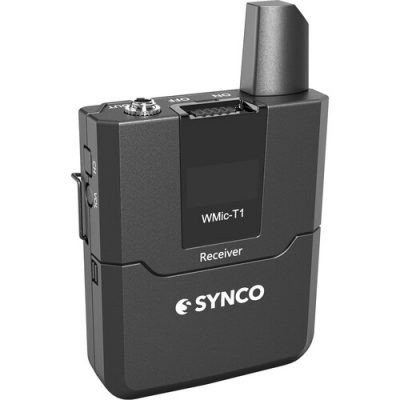

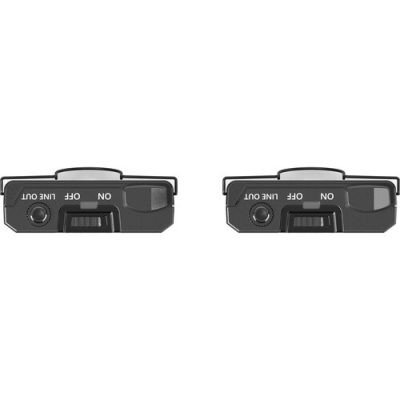

The Synco WMic-T1 is a camera-mount wireless lavalier microphone system offering a simple and complete solution for videographers, vloggers, and mobile journalists who need to record quality speech to cameras, camcorders, or mobile devices such as smartphones and tablets.The WMic-T1 includes an omnidirectional lavalier microphone for convenient voice capture in video shoots, interviews, and more, and its locking 3.5mm TRS mini plug prevents accidental disconnection from the bodypack transmitter. The receiver can be hooked on your belt, attached to a camera shoe, or mounted on a tripod. Connect its 3.5mm output to the mic input of your camera with the supplied TRS cable or to the input of your mobile device with the included TRRS cable.The receiver and transmitter feature 16 switchable channels to help you avoid interference, adjustable volume for easy management of audio levels, and up to 10 hours of run time via AA batteries (available separately).
Wireless Transmission | Analog UHF |
Number of RF Channels | 16 |
Included Transmitters | 1 x Bodypack with Microphone |
Diversity | Non-Diversity |
RF Frequency Band | 572 to 586 MHz |
RF Bandwidth | 14 MHz |

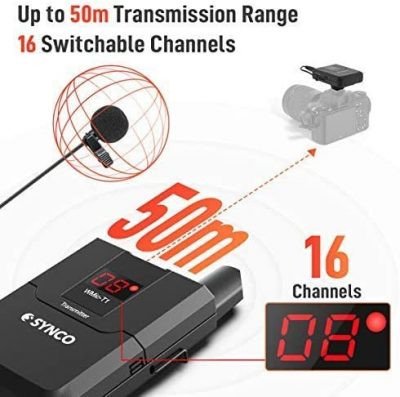

Max Operating Range | 164' / 50 m (Line of Sight) |
Max Systems per Setup | 16 |
Dynamic Range | 92 dB |
Encryption | None |
Deviation | ±65 kHz |
Modulation | FSK |
Form Factor | Camera-Mount |

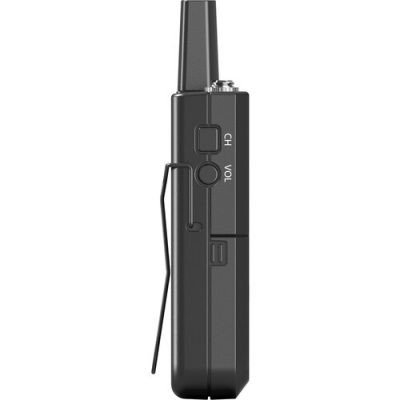

Mounting Options | Belt Clip, Shoe-Mount (with Included Hardware) |
Antenna | 1 x 1/4 Wave Wire, Fixed (Top-Mount) |
Number of Audio Channels | 1 |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Mic Output (Lockable) |
Network I/O | None |
Word Clock I/O | None |
Impedance | 1/8" / 3.5 mm Output: 400 Ohms (Unbalanced) |
RF Principle | Superheterodyne |
Power Requirements | Battery |
Battery Type | 2 x AA (Not Included) |
Approx. Battery Life | 10 Hours |
Display & Indicators | 1 x LCD (Channel) 1 x LED (Battery Status, Clip, Level, Sync) |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |

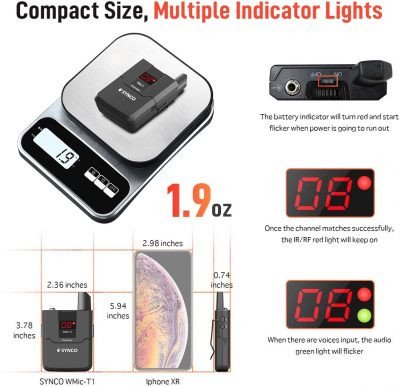

Dimensions | 2.4 x 3.8 x 0.7" / 60 x 96 x 18.8 mm |
Weight | 1.9 oz / 55 g (without Batteries) |
Form Factor | Bodypack |
RF Output Power | 22.3 mW |
Audio I/O | 1 x 1/8" / 3.5 mm TRS Female Unbalanced Input (Lockable) |
Included Cable Connector | 1/8" / 3.5 mm TRS |
Pad | None |
Muting | None |
Audio Input Level | 250 mV (Max) |
Auto-Level Control | No |
Signal Processing | None |
Sync Method | Manual |
Antenna | 1 x 1/4 Wave Wire, Fixed |
Power Requirements | Battery |
Battery Type | 2 x AA (Not Included) |
Approx. Battery Life | 10 Hours |
USB/Lightning Connectivity | None |
Display & Indicators | 1 x LCD (Channel) 1 x LED (Audio Level, Battery Status, Sync) |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Dimensions | 2.4 x 3.8 x 0.7" / 60 x 96 x 18.8 mm |
Weight | 1.9 oz / 55 g (without Batteries) |
Form Factor | Lavalier |
Color | Black |
Sound Field | Mono |
Operating Principle | Pressure Operated |
Capsule | Electret Condenser |
Polar Pattern | Omnidirectional |
Output Connectors | 1 x 1/8" / 3.5 mm TRS Male Unbalanced (Lockable) |
Package Weight | 0.85 lb |
Box Dimensions (LxWxH) | 7.6 x 5.9 x 2.6" |
